Diagonal Metal Ceiling
Open Cell Ceiling  50*50mm/75*75mm/100*100/150*150/200*200mm
Diagonal Metal Ceiling Open Cell Ceiling (5050mm7575mm100100150150200200mm) Exterior Cladding Ceilings Sun Louvres Raised Flooring Manufacturer Supplier Indore Madhya Pradesh India
Product Information
The Linear 84C / 184C Metal Ceiling System offers a sleek, modular design with concealed suspension, ideal for modern interiors and exteriors. Available in steel or aluminum with optional perforation and acoustic backing for enhanced performance.
Category:

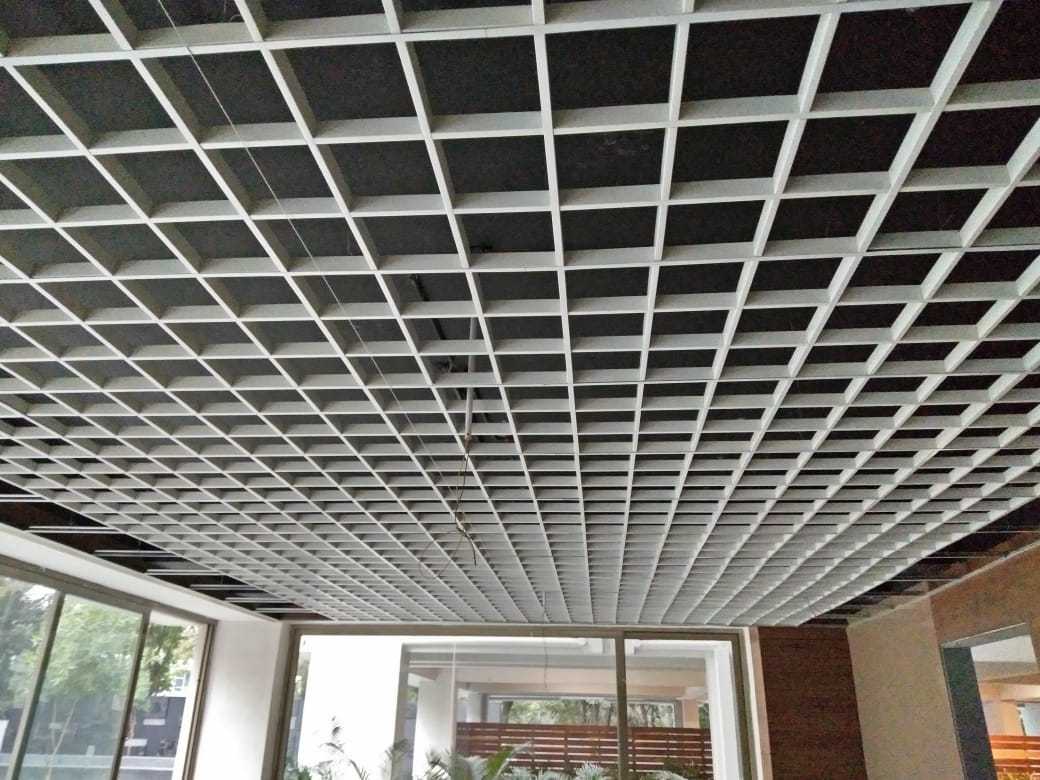

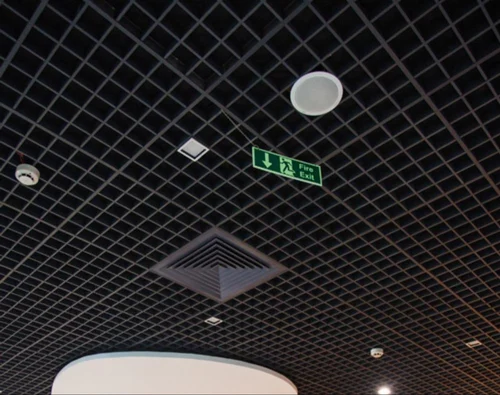

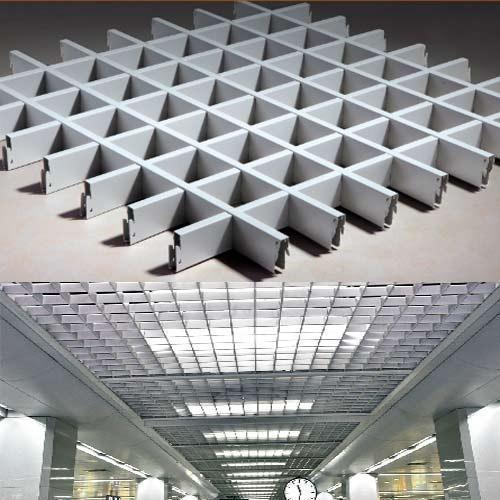

The Open Cell Ceiling System is a visually striking, open-grid ceiling design ideal for modern architecture where both aesthetics and functionality are prioritized. It features interconnected metal cell structures in modular sizes like 50×50mm, 75×75mm, 100×100mm, 150×150mm, and 200×200mm, with custom spacing and height configurations also available. These cells create a lightweight yet visually dynamic ceiling that promotes airflow, facilitates easy integration of lighting, and allows visibility into the plenum above—making it perfect for airports, malls, lobbies, and high-traffic commercial areas.
Each panel is manufactured using galvanized steel or aluminum alloy with typical heights ranging from 30mm to 100mm. The surface is finished with high-durability polyester powder coating (60–80 microns), with optional PVDF, anodized, or woodgrain finishes available for enhanced aesthetics and longevity. The system is suspended via modular carriers and hooks, offering simple installation and complete downward accessibility. It is particularly well-suited for projects requiring ventilation, lighting integration, and aesthetic openness in ceiling design.

Technical Details

          • Type: Modular open cell grid ceiling

          • Standard Cell Sizes:

            • 50×50mm

            • 75×75mm

            • 100×100mm

            • 150×150mm

            • 200×200mm

          • Height Options: 30mm, 50mm, 75mm, 100mm (customizable)

          • Material Options:

            • Galvanized Steel (0.45mm / 0.50mm)

            • Aluminum Alloy (0.60mm / 0.70mm TCT)

          • Type: Modular frame grid with hook-in or lay-in support

          • Material: Galvanized steel or aluminum

          • Finish: Black powder-coated or same as cell finish

          • Installation: Hook-on or lay-in type with modular connectivity

          • Accessibility: Fully downward accessible

          • Standard: Polyester Powder Coated (60–80 microns)

          • Optional Finishes:

            • PVDF Coating (for UV and chemical resistance)

            • Anodized Aluminum

            • Woodgrain, Metallic, or Brushed Finishes

            • Custom RAL Color Matching

          • Back Coating: Epoxy Primer

          • Airflow: Unrestricted through open cell structure

          • Light Integration: Easily integrates with recessed or suspended lighting

          • Visibility: Provides semi-concealed access to HVAC, cables, sprinklers

          • Suspension Rods: 4mm GI rods

          • Edge Trims: Perimeter trims in matching finish

          • Accessories: Joiners, splices, corner clips, and hangers

          • Lighting Fixtures: Compatible with modular luminaires
