Linear Ceiling 84C/184C

Product Information

The Linear 84C / 184C Metal Ceiling System offers a sleek, modular design with concealed suspension, ideal for modern interiors and exteriors. Available in steel or aluminum with optional perforation and acoustic backing for enhanced performance.

Category:

Ceilings

+91 9712551206

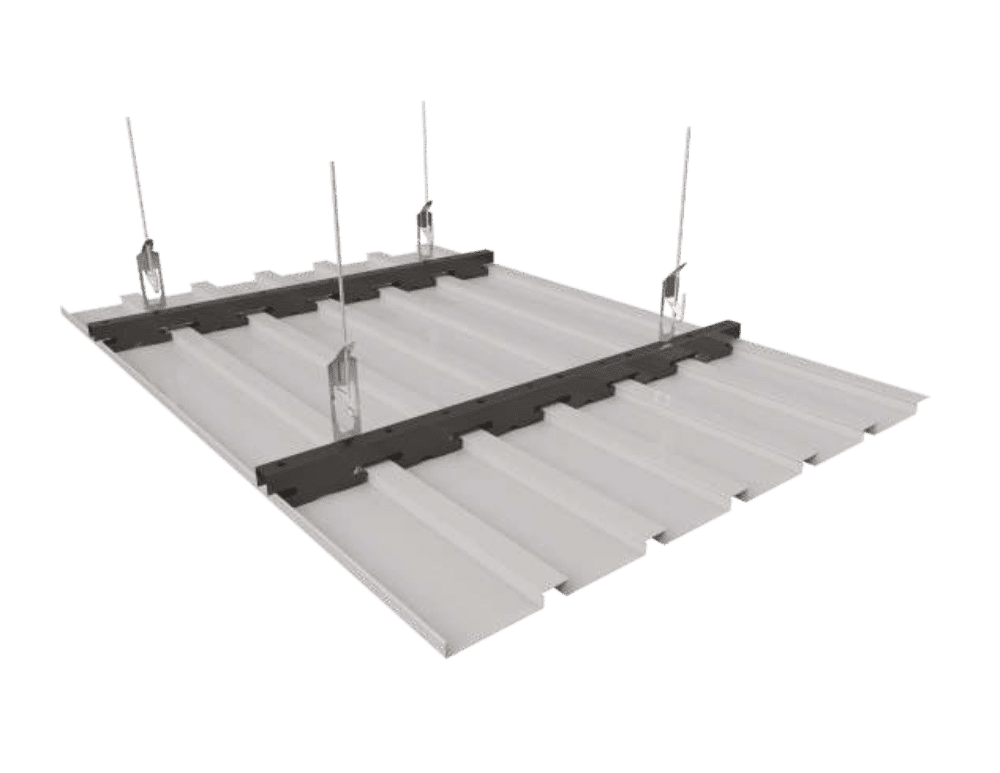

The Linear 84C / 184C Metal Ceiling System is an advanced architectural ceiling solution designed for both indoor and outdoor applications. With its clean, linear design and concealed suspension system, it delivers a seamless and modern aesthetic suitable for a variety of spaces, including commercial offices, educational institutions, airports, and retail environments. The system features panels that are 84mm wide and 12.5mm deep, available in lengths up to 6000mm, offering flexibility in design and layout.

Constructed from high-quality galvanized steel or aluminum, the panels come with durable finish options such as polyester powder coating, woodgrain finishes, or PVDF coatings for enhanced weather resistance. A range of perforation patterns is available to meet acoustic requirements, with the option to integrate non-woven fleece backing for improved sound absorption. The system uses a spring clip mechanism for secure panel mounting, supported by galvanized steel carriers and accessories like edge trims and panel couplers, ensuring easy and efficient installation. With customizable finishes, acoustic performance, and durability, the Linear 84C / 184C ceiling system is a preferred choice for contemporary architectural ceilings.

Technical Details

- - - - Type: Closed-joint linear metal ceiling system
      - Panel Widths: 84mm and 184mm
      - Depth: 12.5mm
      - Length: Up to 6000mm (custom lengths available)
      - Edge Type: Square edge
      - Material Options:
        Galvanized Steel (0.45mm / 0.50mm)
        Aluminum Alloy (0.65mm / 0.70mm TCT)

- - - - Type: Concealed galvanized steel carrier
        Material: 0.5mm Galvanized Steel
        Finish: Black stove-enameled / powder-coated
        Spacing: Max 1000mm center-to-center
        Mounting: Spring steel clips for secure and removable fixing
        Alignment: Precision-cut for consistent joint spacing

- - - - Standard: Polyester Powder Coating (60 microns)
        Rear Coating: Epoxy Primer
        Optional Finishes:
        PVDF Coating
        Anodized Aluminum
        Woodgrain laminate
        Custom RAL color options

- - - - Perforation Styles:
        2.0mm holes at 7mm diagonal pitch
        Custom perforation patterns available
        Acoustic Treatment:
        Non-woven acoustic fleece backing
        PET liner for noise absorption (NRC improvement)

- - - - Suspension Rods: 4mm GI rods
        Carriers: Carrier couplers and joiners
        Panel Clips: Spring-type steel for clip-in mounting
        Edge Details: Perimeter trims and shadow gap profiles
        Service Integration: Suitable for lighting, HVAC, and fire protection systems
