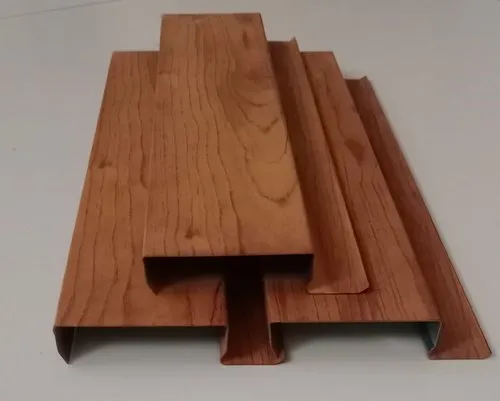

Linear Ceiling 60C/136C

Product Information

The Linear Ceiling 60C/135C system features closed-joint box panels in 60mm and 135mm widths, offering a sleek, continuous look ideal for modern interiors. Made from galvanized steel or aluminum, it supports acoustic, fire-resistant, and decorative finishes with easy access and installation.

Category:

Ceilings

+91 9712551206

The Linear Ceiling 60C / 135C system is a high-performance metal ceiling solution designed for both aesthetic elegance and functional durability in modern architectural spaces. This system features box-shaped panels with closed joints, creating a uniform and linear visual effect that enhances the appearance of ceilings in commercial, institutional, and transport environments. The panels are available in two profile widths: 60mm and 135mm, with a consistent depth of 15mm, and can be supplied in lengths up to 6000mm for seamless design flexibility. Fabricated from galvanized steel or aluminum alloy, these panels are robust, corrosion-resistant, and lightweight, making them suitable for large-scale applications.

The panels are supported by a specially designed carrier system that ensures easy installation and perfect alignment, with clips allowing for individual panel removal and access to the plenum above. A high-quality polyester powder coating (60 microns) ensures long-term surface durability, while optional finishes like PVDF or woodgrain enhance visual appeal. Perforated versions are available with acoustic fleece backing to meet sound absorption requirements in high-traffic areas. Accessories like GI suspension rods, carrier couplers, and edge trims complete the system, making it a versatile, easy-to-maintain, and architecturally clean ceiling solution.

Technical Details

System Type: Linear closed-joint panel system
Panel Widths: 60mm (60C) and 135mm (135C)
Panel Depth: 15mm
Length: Up to 6000mm (custom lengths available)
Edge Type: Boxed square edges with closed joint finish
Material Options:
Galvanized Steel (0.45mm / 0.50mm)
Aluminum Alloy (0.65mm / 0.70mm TCT)

Material: 0.5mm Galvanized Steel
Finish: Black stove-enameled / powder-coated
Spacing: Max 1000mm center-to-center
Attachment: Spring steel clips for easy installation/removal
Design: Engineered for precise alignment and concealed joints

Standard: Polyester Powder Coating (60 microns)
Back Coating: Epoxy Primer
Optional Finishes:
PVDF (Polyvinylidene Fluoride)
Woodgrain
Anodized Aluminum
Custom RAL Colors

Perforation Types:
2.0mm round holes with 7mm diagonal spacing
Dual-hole patterns (2.0mm + 4.0mm combo)
Acoustic Infill:
Non-woven fleece
PET acoustic liner
Use: Enhances NRC value for sound control

GI Suspension Rods (4mm)
Carrier Couplers & Joiners
Spring Clips for Panel Mounting
Edge Profiles & Shadow Gap Trims
Service Integration: Compatible with lighting, HVAC, fire systems
